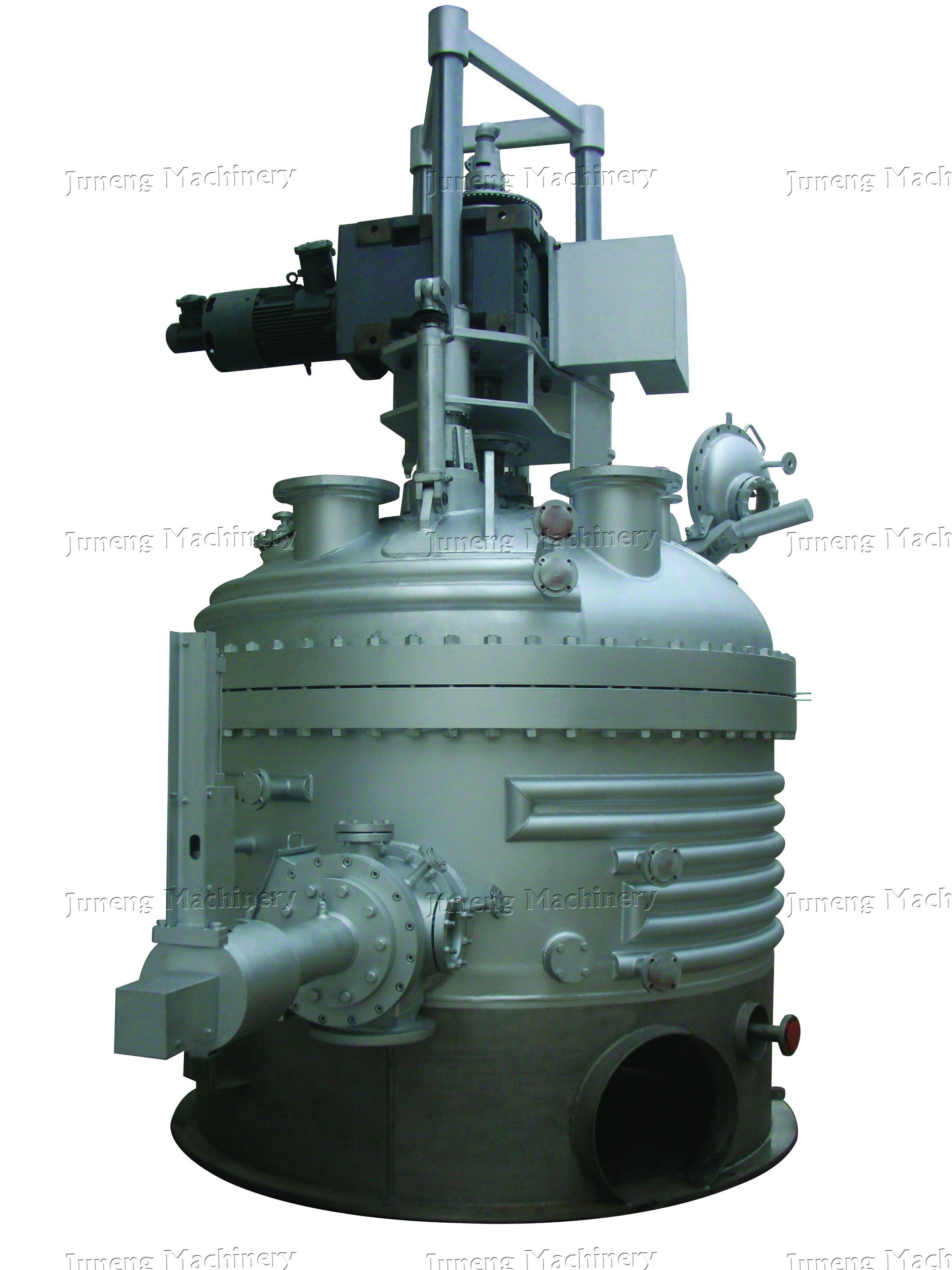

Muti-functions agitated filtration washing dryer filter machine
1.Product Description
GXG series multi-functions filtering,washing,drying(three in
one)machine is a solid-liquid equipment with the functions of
filtration,washing,drying reaction and residue discharging
automatically. This filter can be divided into two in one structure
( filtering and washing) and three in one structure (filtering,
washing and drying).
2.Applications
It is widely used in fine chemical, petroleum, foodstuff, printing,
pharmaceutical industries, Glyphosate, Penicillin and so on.
3.Main technological parameters
Model | Filtration area ㎡ | Shell
diameter (mm)
| Work
pressure (Mpa)
| Nominal
volume (m3)
| Filter cake
height (mm)
|
GXG-600 | 0.28 | 600 | -0.1~0.3 | 0.2 | 150 |
GXG-800 | 0.5 | 800 | -0.1~0.3 | 0.5 | 180 |
GXG-1200 | 1.1 | 1200 | -0.1~0.3 | 1.3 | 250 |
GXG-1600 | 2.0 | 1600 | -0.1~0.3 | 2.8 | 350 |
GXG-2000 | 3.1 | 2000 | -0.1~0.3 | 4.8 | 400 |
GXG-2400 | 4.5 | 2400 | -0.1~0.3 | 6.5 | 450 |
GXG-2600 | 5.3 | 2600 | -0.1~0.3 | 8.7 | 450 |
GXG-2800 | 6.0 | 2800 | -0.1~0.3 | 12 | 450 |
GXG-3000 | 7 | 3000 | -0.1~0.3 | 13 | 500 |
GXG-3200 | 8 | 3200 | -0.1~0.3 | 14.5 | 500 |
| GXG-3400 | 9 | 3400 | -0.1~0.3 | 15 | 500 |
| GXG-3600 | 10 | 3600 | -0.1~0.3 | 20 | 500 |
| GXG-3800 | 11.3 | 3800 | -0.1~0.3 | 23 | 500 |
4.Main features
1) Solid-liquid separation can be realized under pressure or vacuum
state. Filter cakes evenly distributed when filtering which has
good effect.
2) Full enclosed filter, no leakage, no pollution
3) Stirring system can stepless speed regulating and multi-function
work. It can enlarge furthest for the cake space, thus filter cake
can be fully cleaned; the time of drying is reduced greatly, with
high efficiency.
4)Stirring, mixing , beating , reacting, washing and multiform
process working can be practiced in the body and it can carry out
full automatic control.
5) Discharge valve can discharge automatically which can lower
labor intensity.
6) Especially suitable for the material that large solid content,
and recovering liquid phase and solid phase respectively.
7) Adopting horizontal placing filter material, one time completely
filtering no remains. Filter material has unique sealing structure
which is easy to be changed.
8)Anticorrosion three in one system is made of special material
which can be suitable for multiform anticorrosion medium.
